Beginner's Electronic Soldering Kit

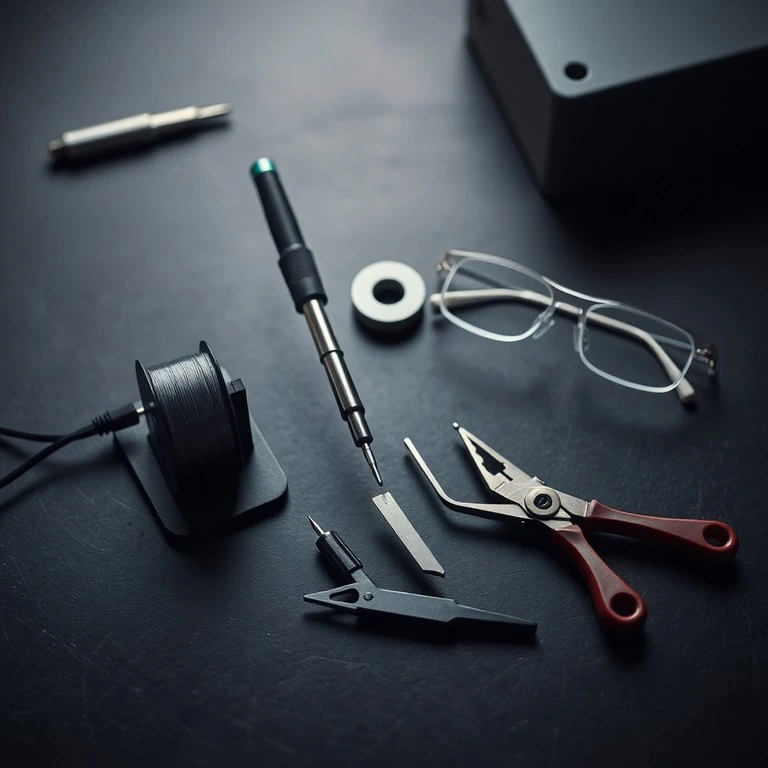

1.Unpack all components of your soldering kit and familiarize yourself with each tool.

2.Place the soldering iron stand on your heat-resistant mat in a well-ventilated area. Ensure there is no flammable material nearby.

3.Insert the soldering iron tip into the stand. Plug in the soldering iron and allow it to heat up for 3-5 minutes, or until the tip is hot enough to melt solder.

4.If using a sponge, dampen it slightly with water. If using brass wool, it is ready to use.

5.To tin the tip: Apply a small amount of solder to the hot tip. It should melt and flow smoothly. Wipe the tip clean on the sponge or brass wool, then reapply a small amount of solder to protect it. This process is called 'tinning' and helps with heat transfer.

6.When ready to solder a component, ensure the surfaces to be joined are clean and free of oxidation. Heat the joint (the component lead and the pad on the circuit board) with the soldering iron tip for 1-2 seconds.

7.Touch the solder wire to the heated joint (not the iron directly). The solder should melt and flow onto the joint, creating a shiny, volcano-shaped connection. Remove the solder wire first, then the soldering iron.

8.Allow the joint to cool naturally without moving it for a few seconds. A good solder joint is shiny and smooth.

9.To desolder, place the desoldering pump near the joint. Heat the solder joint with the iron, then quickly press the button on the desoldering pump to suck up the molten solder. Alternatively, place the desoldering wick over the joint, heat the wick with the iron, and the wick will absorb the molten solder.

10.Use the wire stripper to remove insulation from wires before soldering them to components or terminals.

11.Use the heat shrink tubing by sliding a piece over a wire before soldering. After soldering, slide the tubing over the exposed solder joint and apply heat (from the soldering iron, a heat gun, or a lighter) to shrink it, insulating the connection.

12.Always wear safety glasses to protect your eyes from flying solder or flux.

13.After use, unplug the soldering iron and allow it to cool completely before storing it in its stand or a safe place. Clean the tip and re-tin it for longevity.
